VenusSYNAPSE

Overview

VenusSYNAPSE is a VST3 instrument plugin that provides a programmable workflow automation platform for Nuendo and Cubase Pro. It transforms Nuendo's Project Logical Editor (PLE) from a static tool into a programmable automation engine, enabling professional sound designers to complete complex workflows that previously required hours of manual work — all from a single visual interface.

Professional sound designers working in game audio, film post-production, and broadcast frequently need to perform repetitive batch operations — color-coding hundreds of events, renaming assets to match game engine conventions, layering sound effects with precise timing, or bulk-editing fades and positions. While Nuendo's PLE is powerful, managing and combining multiple PLE presets becomes increasingly difficult as workflow complexity grows.

SYNAPSE solves this by providing an embedded Lua 5.4 scripting engine and a visual module card interface. Users simply select a module, configure parameters, and click execute — the plugin automatically generates native-format PLE presets and triggers execution at runtime. Developers and power users can also define their own modules using simple Lua scripts, with the plugin automatically generating the corresponding GUI.

Key Features

Video Demo

Watch VenusSYNAPSE in action:

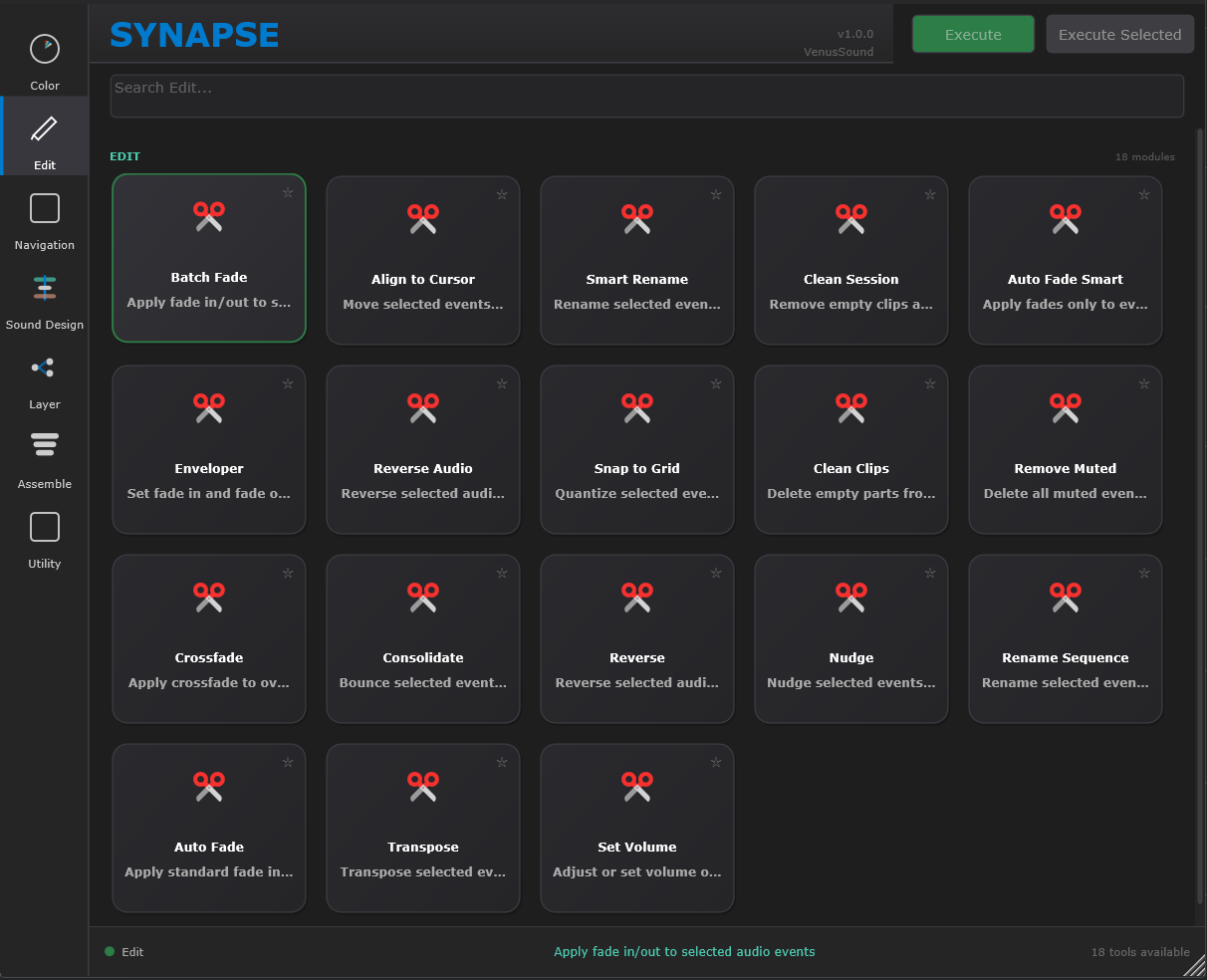

Interface Preview

Lua Scripting Platform

SYNAPSE embeds a full Lua 5.4 virtual machine with a sandboxed execution environment. Users can define workflow modules using concise Lua scripts, declaring parameters (integers, floats, selectors, color pickers, rule lists, etc.) that automatically generate corresponding GUI controls. A complete module can be written in just a few dozen lines of code.

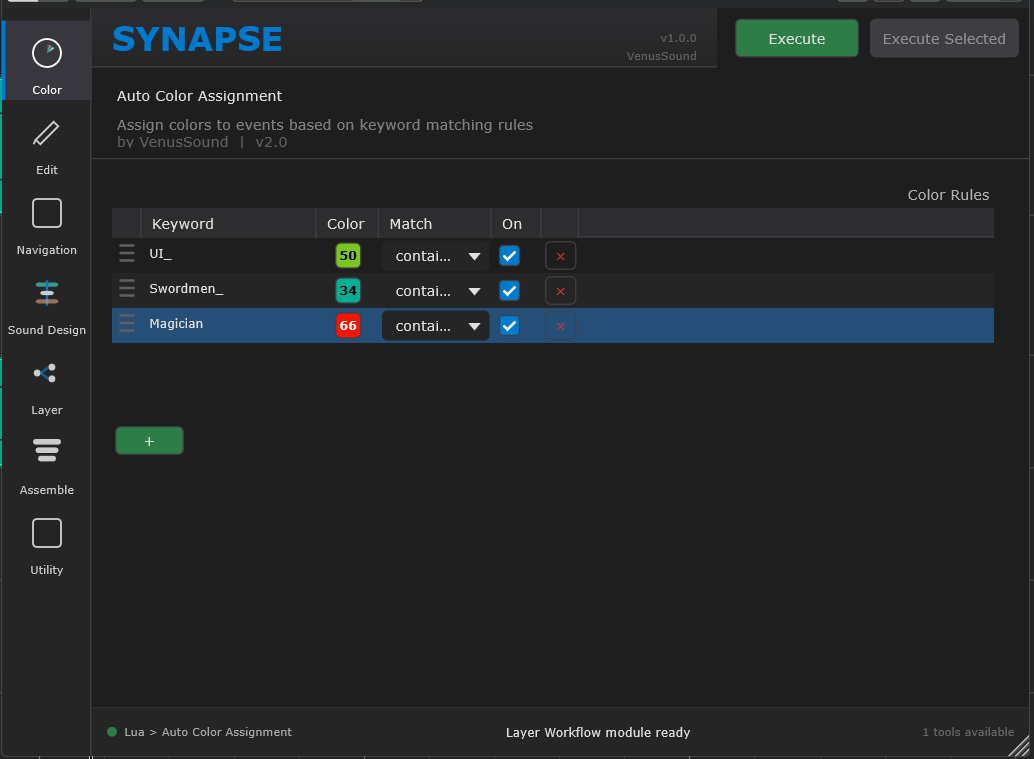

Code Example: Auto Color Assignment

The following example shows a complete Lua module that batch-colors events based on keyword rules:

-- A complete Lua module in just a few dozen lines
local m = synapse.module {
    name = "Auto Color Assignment",
    category = "color",
    description = "Batch-color events by keyword rules"
}

m:param("rules", "rule_list", {
    label = "Color Rules",
    columns = {
        { id = "keyword", type = "string", label = "Keyword" },
        { id = "color",   type = "color",  label = "Color" },
    }
})

function m:execute(p)
    local batch = {}
    for _, rule in ipairs(p.rules) do
        local ple = synapse.ple.create()
        ple:filter_by_name(rule.keyword, "contains")
        ple:action_set_color(rule.color)
        table.insert(batch, { ple = ple, name = rule.keyword })
    end
    synapse.run_batch(batch)
end

Module Management

Modules are saved as .lua files in designated directories. SYNAPSE's ModuleLoader continuously monitors these directories, automatically detecting new and modified files for hot reload without restarting the DAW.

Modules

SYNAPSE v3.0 ships with 25+ workflow modules covering the full sound design pipeline:

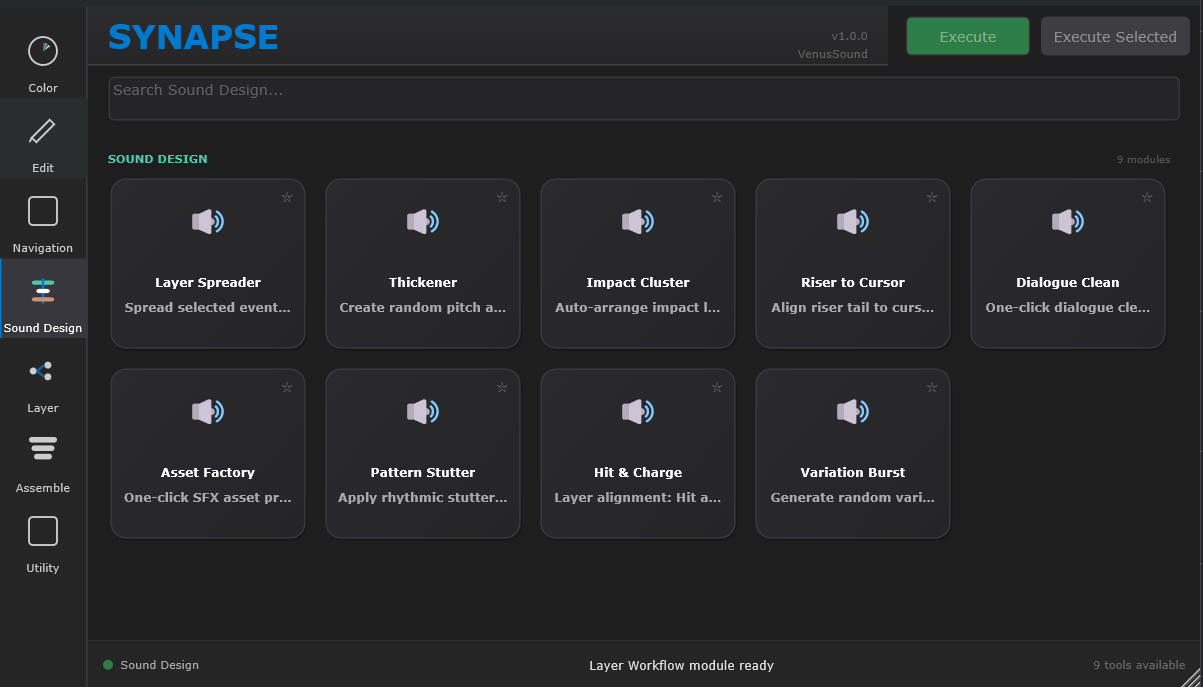

Sound Design

Color

Edit

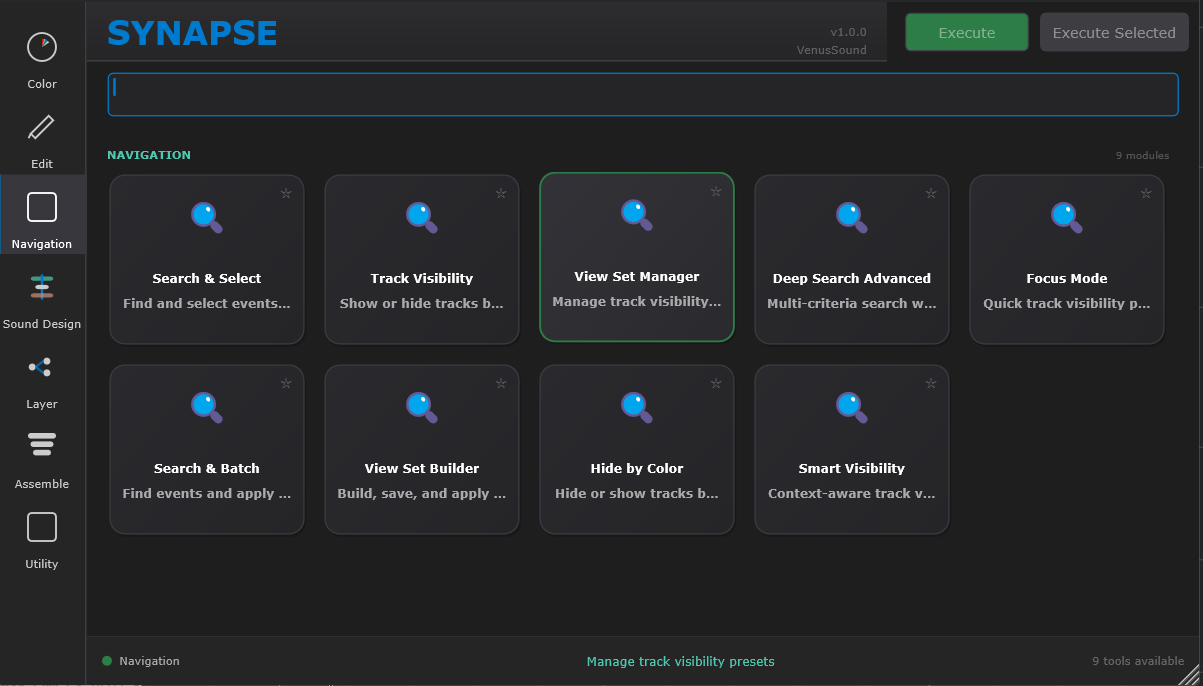

Navigation

Workflow

SYNAPSE simplifies complex DAW automation into three steps:

Specifications
